← Robotics Test Bench

Experiment #06 · Resolved

leg workspace

The current two-joint C-1N leg missed an outward-and-down support target. A small orthogonal proximal-axis probe moved it in the predicted outward direction.

jupyter / guided analysisread the notebook ↗

code, retained outputs, and the investigation in full.

01 · Question

Can one current leg realize the support point?

The target was [+0.30, +0.32, −0.30] m in the torso frame. The torso stayed fixed, gravity was disabled, and no contact, torque, or controller was involved.

02 · Prediction

Leg length looked sufficient; joint-axis orientation was uncertain.

The initial prediction was that the target was reachable. The test sampled only the declared front-left hip and knee limits before introducing any new morphology.

03 · Observation

The two-joint workspace missed outward.

The nearest sampled two-joint position was [+0.341, +0.267, −0.301] m: 0.0670 m from the target, chiefly 0.053 m short in the outward body-Y direction. Holding those angles fixed, a positive 5° experimental proximal-axis probe displaced the foot by [−0.0217, +0.0264, +0.0012] m and reduced the distance to 0.0328 m.

● target support point · blue ● nearest two-joint sample · green ● and arrow positive 5° proximal-axis probe

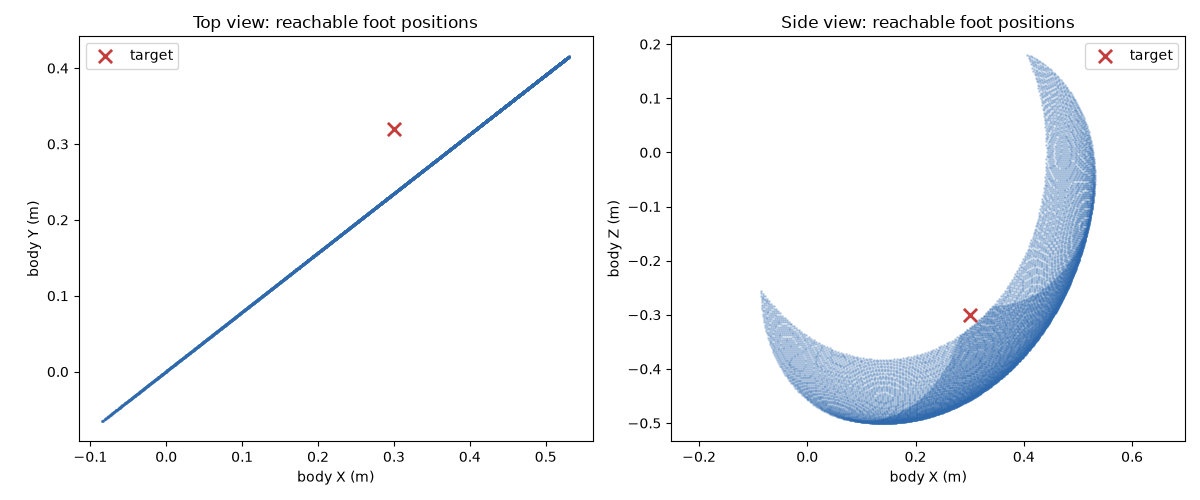

Recreated Jupyter workspace figure with top and side views. The red target sits outside the sampled two-joint workspace in the top view.
Notebook figure · numerical analysis and method. The original notebook’s 14,651-sample MuJoCo grid, reconstructed after its brief local display was not retained. Its top and side projections provide the analytical workspace evidence and show the measurement method used to establish the miss.

Narrow deterministic rerender of the pinned notebook plot cell ↗, using the pre-morphology C-1N model revision ↗.

Recorded C-1N workspace result in the torso X-Y planeThe red target lies outward of the blue nearest two-joint sample. A green arrow shows the measured direction of a positive five-degree experimental proximal-axis probe, which moves toward the target.Torso X-Y plane · metresrecorded nearest sample and 5° probe+X forward+Y outward0.200.300.200.30targetnearest 2-DOF+5° probe0.0670 m0.0328 m
Problem map · physical reading aid. This makes the problem clear at a glance: the target is outward of the nearest two-joint foot position, and the added axis moves the foot toward it. It redraws the recorded measurements; it is not a separate simulation result.

04 · Model update

Reachability comes before gravity compensation.

Leg length alone did not determine the support geometry. The current axes could not place the foot at this target within the sampled tolerance; the added orthogonal axis changed the reachable direction as predicted. That is a morphology result, not a standing, torque, or gait result.

05 · Continuation boundary

The next useful step was C-1N v0.2 STAND.

This bench comparison stopped once it supplied the morphology evidence needed for the standing integration. The next work combined that placement question with Issue #24’s support measurements in C-1N v0.2 STAND ↗. That integration is separate evidence; this short page does not credit the workspace probe alone with stable standing.

follow-up experiment · constrained solve

the added axis reaches this target.

the retained solve reports a residual norm of 0.066976422 m for the two-joint leg. the experimental three-joint leg reaches the target to the printed precision. i recorded the interpretation in the notebook: the added degree of freedom supplies the missing direction. this is a kinematic result for one leg; force transmission and slip still need their own test.

retained output, cell 21; human interpretation, cell 24 · pinned notebook ↗
